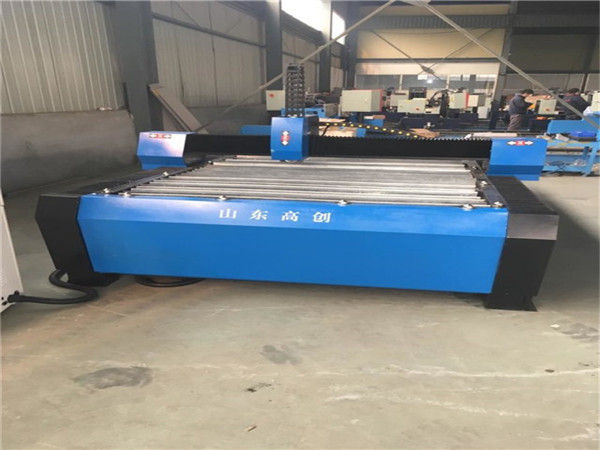

Model NO.: TZJD-1325P
Working Area: 1300mm*2500mm
Color: Red, White, Blue, as Demands
Software: Ucancam Plasma Nest V9
Structure: Rack Gear
Plasma Power Supply: Hwayuan, Hypertherm, Thermadyne
Plasma Power: 40A/63A/100A/160A/200A/260A
Controller: DSP Syntec Lnc
Drive Motor: Stepper, Servo
Necessary: Air Compressor System
Transport Package: Fumigating Wooden Packaging, in Wooden Case
Specification: CE SGS FDA ISO BV
1. Machine features:
1) Welded structure of thickening square tube, together with Taiwan imported guide rail to ensure running speed and accuracy. Strong enough & non-distortion, rigid good.
2) Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.
3) Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.
4) Processed Materials of small and neat kerf, without secondary processing.
5) Advanced digital control system, large capacity storing function, convenient to read and process.
6) Compatible software: Ucancam, Type 3, Artcam, etc.
7) Adopt well known plasma power supply and domestic cutting torch power supply.
8) High configuration with Torch Height Control system, that guarantee the working result successfully.
9) USB interface operating, very conveniently to operate.
Such materials as steel plate, aluminum, iron, Copper; Galvanized sheet, White steel plate, Titanium plates, copper plate, aluminum plate, etc.
|Processing thickness||0,1 - 15 mm|
|InVoltage||8,5 kW-10,5 kW|
|Input voltage||3-phase 380V|
|Power frenquency||50 Hz|
|Mode of file transfer||USB Interface|
|Working method||Untouched are striking|
|Surroundings for software||Windows98/2000/xp/7|
|Optional power source||Hypertherm, Cut-Master, THERMADYNE|
|Plasma Generator||American THERMADYNE|
|G. W.||1200 kg|
|Motory||Steper motors/Servo motors|
|Control system||DSP Controller|
|Poznámky||Configured with Taiwan Servo Speed Reducing device|
|Machine availables||THC(torch height control system),|
Air compressor system,
Ucancam Plasma Nest V9 software.
Guarantee and After-sales service
1) The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
2) Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.
Traning to use
1) We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
2) We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.
